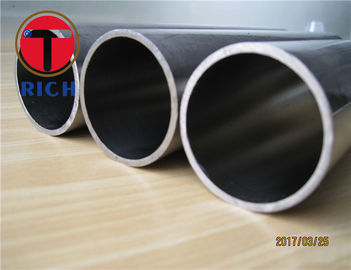

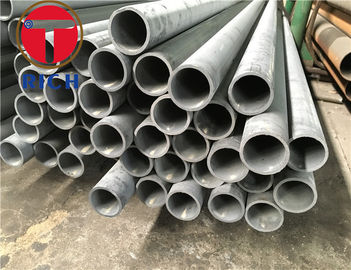

304 316 لوله های مبدل حرارتی بدون درز فولاد ضد زنگ
جزئیات محصول
,
,seamless carbon steel tube
304 316 لوله های مبادله گرما از فولاد ضد زنگ بدون درهم
دامنه اندازه:
OD:6-159mm
WT:1-14mm
طول: 3000mm-12000mm
مشخصات:
تحمل خوب OD و ID که مطابق با استاندارد فنی کنترل می شود
کیفیت پایدار
درجه فولاد و ترکیب شیمیایی
| شماره | درجه فولاد | ترکیب شیمیایی % | ||||||||
| C | آره | م | P | S | نه | Cr | مو | تو | ||
| 1 | 0Cr18Ni9 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00 ~ 1.00 | 17.00 ~ 19.00 | ️ | ️ |
| 2 | 1Cr18Ni9 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00 ~ 10.50 | 17.00 ~ 19.00 | ️ | ️ |
| 3 | 1Cr19Ni9 | 0.04 تا 010 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00 ~ 12.00 | 18.00 ~ 20.00 | ️ | ️ |
| 4 | 00Cr19Ni10 | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 8.00 ~ 12.00 | 18.00 ~ 20.00 | ️ | ️ |
| 5 | 0Cr18Ni10Ti | ≤0.08 | ≤1.00 | ≤3.00 | ≤0.035 | ≤0.030 | 9.00 ~ 12.00 | 17.00 ~ 19.00 | ️ | ≥5C |
| 6 | 1Cr18Ni11Ti | 0.04 تا 010 | ≤0.75 | ≤2.00 | ≤0.030 | ≤0.030 | 9.00 ~ 13.00 | 18.00 ~ 20.00 | ️ | 4Xc~ 0.60 |
| 7 | 0Cr18Ni11Nb | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 9.00 ~ 13.00 | 17.00 ~ 20.00 | ️ | ️ |
| 8 | 1Cr19Ni11Nb | 0.04 تا 010 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 9.00 ~ 13.00 | 17.00 ~ 20.00 | ️ | ️ |
| 9 | 0Cr17Ni12Mo2 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.030 | 11.00 ~ 14.00 | 18.00 ~ 20.00 | 2.00 ~ 3.00 | ️ |
| 10 | 1Cr17Ni12Mo2 | 0.04 تا 010 | ≤0.75 | ≤2.00 | ≤0.030 | ≤0.030 | 11.0~ 14.00 | 16.00 ~ 20.00 | 2.00 ~ 3.00 | ️ |
-
قطعات خودرو ASTM A513 لوله های فولادی جوش داده شده سرد با تولید DOM
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
لوله های فولادی بدون درز قطر 25 میلیمتر برای سیستم های هیدرولیک
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
لوله فولادی فسفاته سیاه بدون درز دقیق برای سیستم های هیدرولیک
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
دقیق لوله های فولادی گالوانیزه بدون درز DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
