لوله های فولادی خودرو

SA513 ERW Precision Steel Tubes Torich International Limited is a professional manufacturer and exporter of steel pipes materials. Our main products are ERW Precision Steel Tubes,The material of ERW Precision Steel Tubes we usually use for producing precision seamless steel tube is 1010,1020,1045,4130,4140 Applications:for mechinery,mechanical engineer Standard: ASTM A513 cold rolling welded precision steel tubes Size range: O.D.:6-350mm W.T.:1-15mm L:max12000mm Steel Grade:

Big Diameter Exhaust Welded ASTM A554 Automotive Steel Tube Big-Diameter ASTM A554 Welded Stainless Steel Tube for Automotive Exhaust Systems Big-diameter ASTM A554 welded stainless steel tube is designed for automotive exhaust components requiring consistent diameter, controlled wall thickness, reliable weld integrity, and resistance to exhaust condensate and elevated temperatures. It is commonly manufactured from ferritic stainless steel such as Type 409 for cost-controlled

TORICH Inner Tube Shock Absorber Tube CK45 STKM11A Steel Pipe Inner Tube Shock Absorber Tube CK45 STKM11A Steel Pipe Product Type: shock absorber tube CK45 seamless cold rolled steel pipe honed tube Material: Carbon Steel Tube Outer Diameter: 30-250mm Wall Thickness: 2-30mm Material Grade: ST52,E355,CK45,A106,A53,SKTM11A,STKM13A,STKM13C,S45C,and so on Delivery Condition: BK/BKS/GBK/NBK Delivery time: within 20-30 days after receiving prpayment Trade Terms: any other China

JIS G3472 STAM290GA STAM340G Carbon Steel Welded Tube for Automobile Outside diameter: 15.0mm up to and including127.0mm Wall thickness: 1.0mm up to and including 7.0mm Application: Automobile structural purposes Grade: JIS G3472 STAM290GA, STAM 290GB, STAM 340G, STAM 390G, STAM 440G, STAM 470G, STAM 500G, STAM 440H, STAM 470H, STAM 500H, STAM 540H JIS G3472 ERW automobile structure steel tube Chemical Composition Table: Steel Grade Chemical Composition % C Si Mn P S STAM

EN10216-1 DIN17175 St35 St45 St52 E215 E235 E355 Carbon Steel and Alloy Steel Shock Absorber Cylinder Use Product Name Seamless carbon steel pipe tube Material Carbon Steel and Alloy Steel Surface Oiled, Polished, Brightness, Metallic color Standard ASTM A106 A53 A192 A179 A210 A519 DIN17175 1629 2391 EN10216-1 10216-2 10305-1 and so on Grade St35,St45,St52,E215,E235,E355,sch10,sch20,A106,A179,A192,A210,T11,T22,T12,AISI4130,SAE1010,SAE1020.etc Craft Cold rolled and Cold drawn

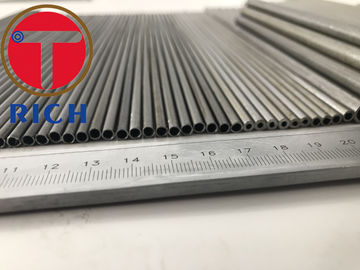

10*0.7 PVF Bundy Tube Automotive Steel Tubes 1. Standard ASTM A254 Copper-brazed steel tubing SAE J526 Welded low-carbon tubing SAE J527 Brazed Double Wall Low-Carbon Steel Tubing EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems 2. Steel Grade BHG1, BHG2, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06 3. Heat Treatment BK or NBK 4. Specification O D/ mm 4 4.2 4.76 6 6.35 7.8 8 9.52 W T 0.5-1.0mm (0.5-0.7mm common WT) Tolerance ±0.05mm Length

Precision Steel Tube EN10305-1 Cutting to Specified Length with Hydraulic Cylinder Tubing Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes For Hydraulic Cylinder/Oil Cylinder Tube/Excavator Chains and Parts Size range: O.D.:6-380mm W.T.:1-35mm L:max12000mm Steel Grade and Chemical Compositions: Steel Grade C Si Mn P S Al Steel Name Steel Number max max max max max min E215 1.0212 0.10 0.05 0.70 0.025 0.025 0.025 E235 1.0308 0.17 0.35 1.20 0.025 0.025 - E355 1.0580

Large Diameter and Thin Wall Steel Tubes for Heavy Truck Exhaust System from TORICH ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Size : O.D.:6-350mm W.T.:1-12.5mm L:max12000mm Grade: 1008,1010, 1020, 1026 Production: ERW + DOM Steel Grade and Chemical Compositions: Steel Grade C Mn P S Si Cr Mo max max max max min 1008 0.10 0.5 0.035 0.035 1010 0.08-0.13 0.30-0.60 0.035 0.035 1018 0.14-0.20 0.30-0.60 0.035 0.035 1020 0.17-0.23 0.30-0.60 0.035

DOM Cold Drawn Welded Tube for Automotive Parts with EN10305-2 E235 E355 EN10305-2 Cold Drawn Welded Precision Steel Tubes DOM tubing E155,E195,E235,E275,E355 +C +LC +SR +A +N DOM is a process that is applied to tubing after it is initially constructed.It is refferred to as Seamless ,It can be said that do seamless process method on ERW tubes,So the tubes will have a high strength ,high quality .Material form E155 E195 E235 E275 E355 1020 1026 and so on .DOM tubing is
