لوله فولادی دقیق

6MM OD FUEL INJECTION PIPE SEAMLESS CARBON THICK WALL 2MM ID ST37 STEEL PIPE ST37.4 Carbon Seamless Steel Pipe Tube Chemical Composition(%) Mechanical Property C Si Mn S P Cr Ni Cu Mo Yield Strength Tensile Strength ( σs ) ( σb ) 0.08~0.13 0.15-0.35 0.30~0.60 ≤0.050 ≤0.040 ≤0.20 ≤0.25 ≤0.25 - ≥205(21) (MPa) ≥335(35) (MPa) End Shape Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's requirements Surface Oiled, Galvanized,

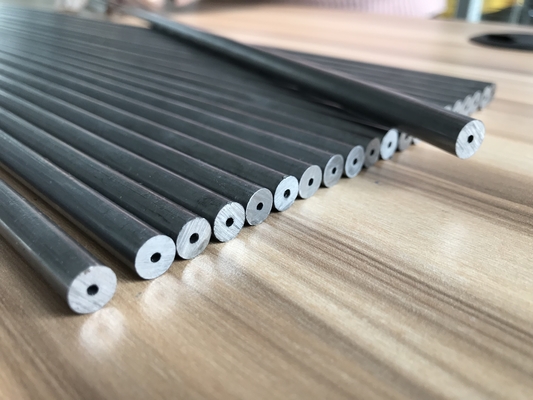

4130 4140 30CrMo4 42CrMo4 Precision Chrome Moly Alloy Tube Chemical Composition: Standard Steel Grade C(%) Si(%) Mn(%) S(%) P(%) A519 1010 0.05-0.15 0.15-0.35 0.3-0.6 ≤0.050 ≤0.040 1020 0.15-0.25 0.15-0.35 0.3-0.6 ≤0.050 ≤0.040 1045 0.43-0.50 0.15-0.35 0.6-0.9 ≤0.050 ≤0.040 4130 0.28-0.33 0.15-0.35 0.4-0.6 ≤0.040 ≤0.040 4135 0.32-0.39 0.15-0.35 0.6-0.9 ≤0.040 ≤0.040 4140 0.38-0.42 0.15-0.35 0.7-1.0 ≤0.040 ≤0.040 Other Specification: End Shape Beveled end, plain end, vanished,

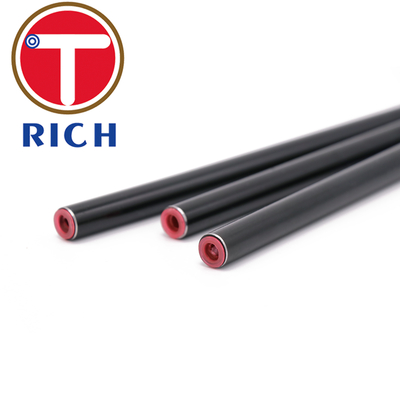

EN10305-4 E355 Hard Chrome Plated Precision Rod for Hydraulic Pneumatic Cylinders Mechanical Engineer EN10305-4 seamless precision bending steel tubes of hydraulic systems Size for Precision Steel Tube: 5-100mm Delivery condition for Precision Steel Tube: +N, +C,+LC, +SR, +A 1. Standard for Precision Steel Tube: EN10305-4 Cold drawn Precision Seamless Steel Pipes 2. Steel Grade for Precision Steel Tube: E215,E235,E355, other materials upon agreement with customers. 3.

Hard Chrome Plated ASTM A29 1045 Cylinder Piston Rod for Hydraulic Pneumatic Cylinders Type for Precision Steel Tube: Hard Chrome Plated Piston Rod Application for Precision Steel Tube: For Hydraulic Pneumatic Cylinders, Mechanical Engineer Technique: Cold Drawn Si​ze: OD 5-420mm WT 1-50mm Length Max12000mm Steel Grade According to Different Standards China steel grades: GB standard 45# Steel Germany steel grades: DIN standard CK45 Japanese steel grades: JIS standard S45C

OD50mm WT6mm ASTM A519 Gr 4130 4140 Precision Steel Tube for Automotive Usage TORICH is able to manufacture 4130 4140 hydraulic chromium molybdenum alloy precision seamless tubes accordingto ASTM A519, which covers both seamless hot-finished mechanical tubing and seamless cold-finished mechanical tubing The tubes can be furnished in the following shapes, as specified by the purchaser: round, square, rectangular, and special sections. Chemical Requirements Steel grade C max Mn

Hollow Stainless Steel Tube 304/316L Non-Magnetic Rustproof Stainless Steel Capillary Seal Bending Laser Cutting Stainless steel capillary properties: 1. good softness, 2. corrosion resistance, 3. high temperature resistance, 4. wear resistance, tensile resistance, 5. water resistance and provide excellent electromagnetic shielding performance. The stainless steel hose can be bent freely into various angles and radii of curvature, with the same flexibility and durability in

DIN2391-1 ST35, ST45, ST55, ST52.4 NBK Precision Steel Tube for Hydraulic Cylinder System Standard: DIN2391-1 Technique: Cold Drawn, Cold Rolled. Size range: OD: 4-76mm, WT:0.5-8mm, Length: ≤12m, or at buyer's request. Material: ST35, ST45, ST55, ST52.4 etc Surface quality: Without oxidization, No crack, No fold, No rolling fold, No scar, No laminar defect Quality grades Tubes shall be supplied in the following quality grades: for precision steel tubes, that do not require an

133*4*4113mm Planar Sputtering Target Alloy Sputtering Target Metal Single Crystals Grade:304L Specification: 133*4*4113mm Tolerance of OD:0.1-0.4mm Tolerance of ID:124.5-125.2mm Tolerance of Length:-0/+10mm Ellipticity: Roundness deviation≤0.10mm Straightness deviation: Overall length direction≤0.5mm Standard:DIN2462

Hydraulic Precision Steel Tube 0.5 - 10mm Thickness 10# - 45# Grade Chemical Composition Steel grade C max. Si max. Mn max. P max. S max. Altot min. Name Number E215 1.0212 0.10 0.05 0.7 0.025 0.015 0.025 E235 1.0308 0.17 0.35 1.2 0.025 0.015 -- E355 1.0580 0.22 0.55 1.6 0.025 0.015 -- Tolerance Outer Diameter Allowable tolerance special tolerance GB/T3639 DIN2391 OD WT 4mm-20mm ±0.10mm ±0.08mm ±0.05mm ±0.05mm 20mm-30mm ±0.10mm ±0.08mm ±0.08mm ±0.08mm 31mm-40mm ±0.15mm ±0
