dom metal tubing
"

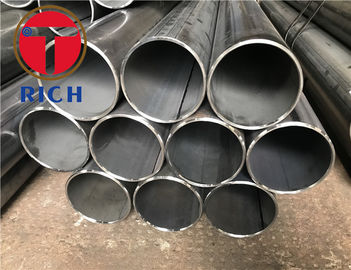

1026 1020 4130 لوله فولادی DOM بدون درز کربن ASTM A513 نازک کششی دیوار نازک
Products Description TORICH High Tensile Thin Wall 34mm MS 1010 Plastic End Caps for AISI 1020 46mm 4130 Carbon Seamless Mild ASTM A513 1026 DOM Tube Quick Detail: Honed steel pipes is used for hydraulic Cylinders and oil and pnuematic Cylinders.with material E155 E195 E235 E275 E355. Raw material steel pipes as per stamdard EN10305-2, Cold drawn ERW steel pipes , Cold drawn seamless pipes. Feature 1.Honed Hydraulic Cylinder Tube is made from DOM steel tubes,With high
لوله فولادی DOM با قطر 6 تا 350 میلیمتر، کشیده سرد برای قطعات خودرو

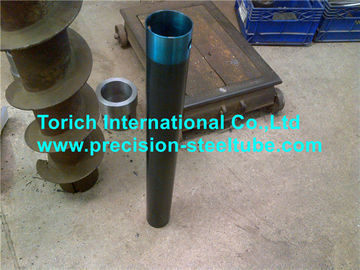

TORICH Carbon Steel Cold Drawn Welded Tube Precision Steel Pipe DOM Steel Tube EN10305-2 Cold Drawn Welded Precision Steel Tubes DOM tubing E155,E195,E235,E275,E355 +C +LC +SR +A +N DOM is a process that is applied to tubing after it is initially constructed.It is refferred to as Seamless ,It can be said that do seamless process method on ERW tubes,So the tubes will have a high strength ,high quality .Material form E155 E195 E235 E275 E355 1020 1026 and so on .DOM tubing is
BS6323-6 لوله های فولادی بدون درز لوله های فولادی جوش شده ضخامت دیوار 35mm
Products Description BS6323-6 35mm Wall Thickness Seamless Welded Steel Tubes DOM Steel Tubes Machining Material CEW1a CEW2a CEW3a CEW4a CEW5a Size WT: 1-35mm; OD: 6-350mm; Length: max 12m Production Method Seamless Cold Drawing Or Cold Rolling/Electric Resistance Welded Applications For Auto Industry / For Machinery Use/mechanical And General Engineering Purposes Test Flattening test, Drift expanding test, Leak tightness test. Method of Manufacture: The tubes are manufacture

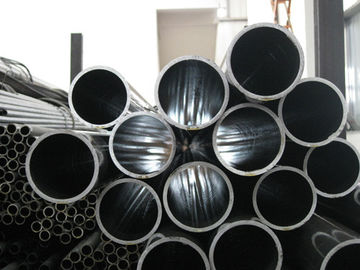

EN10305-2 DOM لوله های فولادی E155 E195 E235 E275 E355 سرد کشیده شده
EN10305-2 E155,E195,E235,E275,E355 Welded Cold Drawn DOM Steel Tube from TORICH Steel Grade/Steel Material: E155 E195 E235 E275 E355 Delivery Condition: 1 BK Cold finished(hard) 2 BKW Cold finished(soft) 3 BKS Cold finished and stress-relieved 4 GBK Annealed 5 NBK Normalized Size Range: O.D.:6-350mm W.T.:1-35mm L:max12000mm Characteristic: Good concentricity Good OD and ID tolerance High precision Stable quality Smooth roughness DOM Steel Tube Production Process: Raw material

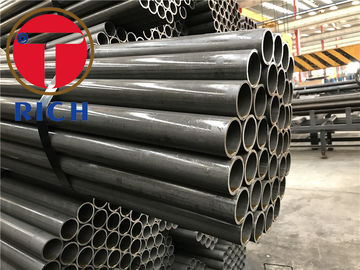

آستر A513 1020 برای لوله های هیدرولیک غیر آلیاژ سیم فولادی ساخته شده از فولاد ضد زنگ
ASTM A513 1020 DOM Cold Drawn Welded Steel Tube ASTM A513 1020 DOM Cold Drawn Welded Steel Tube Thickness 1.5-15mm Out Diameter 18-230mm Length 5-12meter 5.8meters for 20' container,6meters To 12 meters for 40'container Standard 1026 Application cold drawn seamless 1026 dom steel tube price is widely used in following fields: 1.For low pressure liquid delivery such as water , gas and oil . 2.For construction End Threading ,coupling and with plastic caps protected Surface

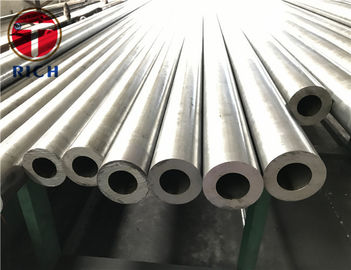

لوله بدون درز لوله DOM BS 6323-4 CFS 3 / CFS 3A / CFS 4
Products Description: DOM Steel Tube Round Seamless Cold Drawn Steel Pipes BS 6323-4 CFS 3, CFS 3A, CFS 4 Steel Grade/Steel Material: Designation Chemical composition(ladle analysis) C % Si % Mn % P(Max) % S(Max) % Cr % Mo % CFS 3 0.20 max 0.35 max 0.90 max 0.050 0.050 - - CFS 3Aa 0.20 max 0.10 to 0.35 0.60 to 1.00 0.050 0.050 - - CFS 4 0.25 max 0.35 max 1.20 max 0.050 0.050 - - CFS 5b 0.23 max 0.50 max 1.50 max 0.050 0.050 - - CFS 6 0.30 to 0.40 0.35 max 0.50 to 0.90 0.050 0
لوله فولادی DOM سرد کشیده شده ASTM A513 برای ماشین آلات خودرو
Products Description TORICH Mechanical Cold Drawn Welded Steel Tube ASTM A513 Type 5 Carbon Steel DOM Tube Standard ASTM A513 Material 1008 1010 1018 1020 1026 1035 4130 4140 Size WT: 1-12.5mm; OD: 6-350mm; Length: max 12000mm Applications For Machinery, Mechanical Engineer, Automotive Parts Production Method Electric-Resistance-Welded And Cold Drawn Delivery Condition Sink-drawn, Normalizing,mandrel-drawn Test Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness

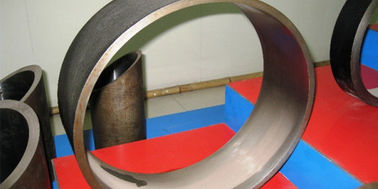

لوله های فولادی DOM EN10305-2 برای سیلندر های هیدرولیکی، لوله های فولادی ساخته شده با دقت دقیق جوش داده شده
EN10305-2 Welded Precision Cold Drawn Steel Tubes Applications: Auto industry Machinery Use Oil Cylinder Tube Motorcycle shock absorber Auto Shock Absorber Inner Cylinder Telescopic Cylinders Jack Lifting Systems Description: ERW+ DOM The tubes are manufactured from electric welded pre-tubes by cold drawing or other suitable processes. The tubes not include welds used for joining lengths of flat rolled strips prior to forming the pre-tube Description: Mechanical tubing made
لوله های بدون درز DOM دارای خواص مکانیکی خوبی هستند
Products Description: Cold Drawn Seamless Steel Tubes DOM Seamless Tubes With Good Mechanical Properties Delivery Condition: HR, CW, SR, A, N, HF Size Range: OD: 5.0-200mm WT:0.5-20mm Length: max 7000mm Cold Drawn Seamless Steel Tubes DOM Seamless Tubes With Good Mechanical Properties DOM Steel Tube Characteristic: Good concentricity Good OD and ID tolerance High Precision Stable quality Smooth Roughness TORICH QUALITY ASSURANCE Production Processs: Seamless or ERW tube and
