2inch 304 304h stainless steel pipe

اطلاعات پایه
محل منبع: چین
نام تجاری: TORICH
شماره مدل: 304
جزئیات بسته بندی: در جعبه های چوبی یا بسته های شش ضلعی در بسته بندی های مناسب دریا
زمان تحویل: 35-45 روز
شرایط پرداخت: L / C ، D / A ، D / P ، T / T ، Western Union، MoneyGram
اطلاعات تکمیلی
نام محصول: لوله فولادی ضد زنگ 2 اینچ 304 304 ساعت مواد: فولاد ضد زنگ
آلیاژ یا نه: غیر آلیاژ شکل بخش: دور
کاربرد: برای دیگهای بخار ، سوپرهیترها ، خطوط لوله بخار دیگهای بخار تکنیک: قرعه کشی سرد
مقطع تحصیلی: ASTM A269 محل منبع: ژجیانگ ، چین

توضیحات محصول

2inch 304 304h stainless steel pipe

304 Stainless Steel Pipe is most suited for applications where superior strength and excellent corrosion resistance is required. 304 / 304L stainless steel seamless pipes are widely accepted in food processing, water treatment, petrochemical, diary, and chemical industries for moving fluids and gases. Welded 304 / 304L stainless steel tube/pipe is ideally used for posts, and poles as well as handrails, in exterior and marine applications. 304 / 304L pipes find extensive use in applications requiring welding, machining, grinding, forming, and polishing.



Chemical Composition

Typical Chemical Composition % (max values, unless noted)

Weight %

Carbon (C)

Manganese (Mn)

Phosphorus (P)

Sulfur (S)

Silicon (Si)

Chromium (Cr)

Nickel (Ni)

304

.08

2.00

.045

.030

1.00

18.0-20.0

8.0-11.0

304L

.035

2.00

.045

.030

1.00

18.0-20.0

8.0-13.0



Mechanical Properties

Typical Room Temperature Mechanical Properties
Type UTS KSI (MPA) 0.2% YS KSI (MPA) Elongation% in 2ʺ(50.8 mm) HardnessRockwell
304 90 (621) 42 (290) 55 B82
304L 85 (586) 35 (241) 55 B80

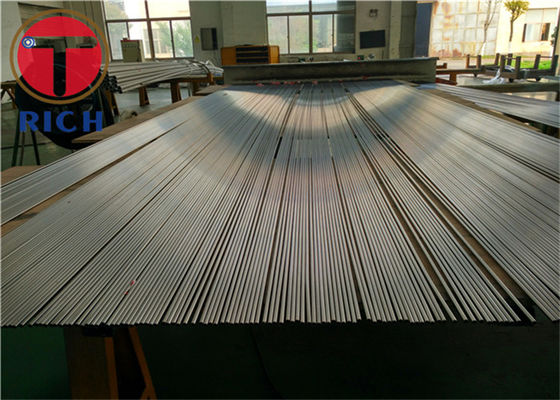

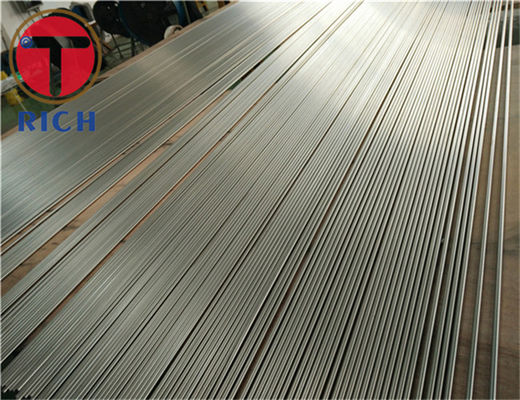

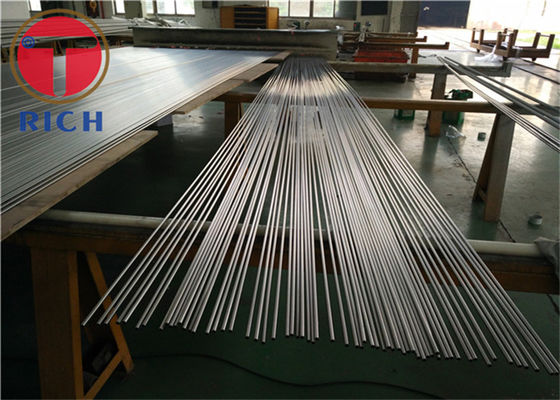

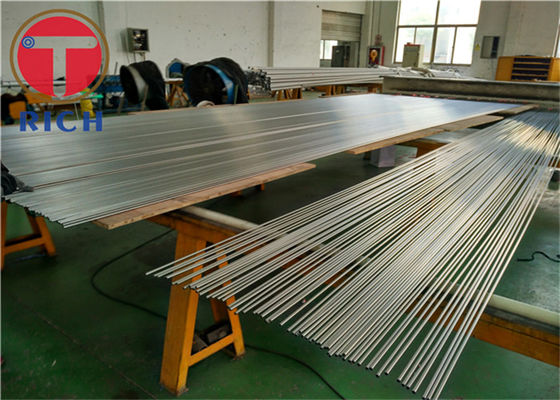

Product Pictures

2inch 304 304h stainless steel pipe 0



2inch 304 304h stainless steel pipe 1

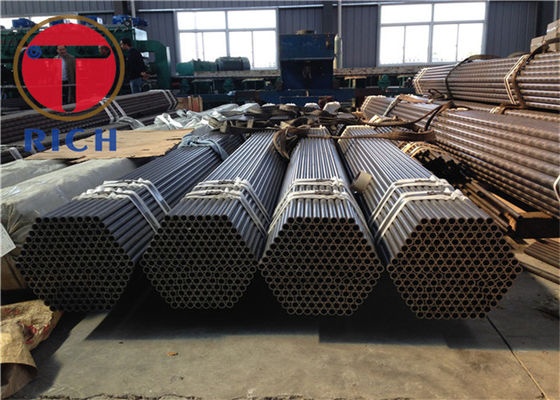

Packaging and Delivery

2inch 304 304h stainless steel pipe 2

FAQ:

Q: Are you trading company or manufacturer?

A: We are a professional steel pipes materials manufacturer.



Q: How long is your delivery time?

A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.



Q: Do you provide free sampleas?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.



Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
